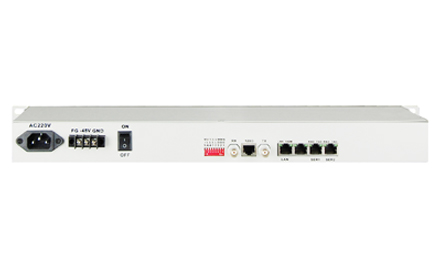

Product Description

This interface converter is based on FPGA, providing one framed E1 interface, one Ethernet interface and 4 serial interfaces to achieve 10/100Base-T Ethernet data transmission on the E1 channel.Providing one Ethernet Bridge plus 4 serial interfaces via one E1 interface;

Functional Properties

? Based on self -copyright IC
? Can realize monitor and control of remote equipment, OAM management data did not take up user’s timeslot and save E1 bandwidth

? E1 supports any timeslot set, the rate is 64K-2048K

? The local device can forced the remote device rate follow it
? Have indicator when the remote device is power-off or E1 line is broken or lose signal;
? Have the function of E1 interface loop back check, avoid the converter crashed because of interface loop return;
? The Ethernet interface supports jumbo frames (2036 Bytes);
? Inter-set dynamic Ethernet MAC address (4,096) with local data frame filtering function
? Ethernet interface supports 10M/100M, half/full duplex auto- Negotination, support VLAN
? Ethernet interface supports AUTO-MDIX (crossed line and straightly connected line self-adaptable );
? Have Ethernet monitor self-reset function, the equipment will not dead
? Provide 2 clock types: E1 master clock and E1 line clock;
? Provide 2 impedances: 75 Ohm unbalance and 120 Ohm balance;
? Support SNMP Network Management
? Serial Data Interface can be RS232/RS422/RS485/TTL optional
? Serial channel can transmit adaptable serial data asynchronously 300 Kbps-19200Kbps baud rate
? Serial data multiplexing in E1 support ITU-T R.111 jumping coding mode

? The local RS232 serial data can command the remote RS232 serial data loop-back to the local. This loop- back in the outer ring

of RS232 data interface, you can test the RS232 interface chip without damage

? Serial port interface lightning-protection reached IEC61000-4-5 (8/20μS) DM(Differential Mode): 6KV, Impedance (2 Ohm),

CM(Common Mode): 6KV, Impedance (2 Ohm) standard

Technical Parameters

u E1 Interface

    Interface Standard:      comply with protocol G.703;
    Interface Rate:             n*64Kbps±50ppm;
    Interface Code:            HDB3;

E1 Impedance: 75Ω (unbalance), 120Ω (balance);

Jitter tolerance: In accord with protocol G.742 and G.823

Allowed Attenuation: 0~6dBm

u Ethernet interface (10/100M)

Interface rate: 10/100 Mbps, half/full duplex auto-negotiation

Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

MAC Address Capability: 4096

Connector: RJ45, support Auto-MDIX

u Serial Interface

Standard

EIA/TIA-232 RS-232 (ITU-T V.28)

EIA/TIA-422 RS-422 (ITU-T V.11)

EIA/TIA-485 RS-485 (ISO/IEC8284)

Serial Interface

RS-422: TXD+, TXD-, RXD+, RXD-, Signal Ground

RS-485 4 wires: TXD+, TXD-, RXD+, RXD-, Signal Ground

RS-485 2 wires: Data+(Correspond TX+), Data-（Correspond TX-）, Signal Ground

RS-232: RXD, TXD, Signal Ground

u Power

Power supply: AC180V ~ 260V；DC –48V；DC +24V

Power consumption: ≤10W

u Dimension

Product Size : 216X140X31mm( WX DXH))

Simple packaging : 274X193 X84mm ( WX DXH)

Piece Weight: 1.2KG

u Working environment

Working temperature: -10°C ~ 50°C

Working Humidity: 5%~95 % (no condensation)

Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)

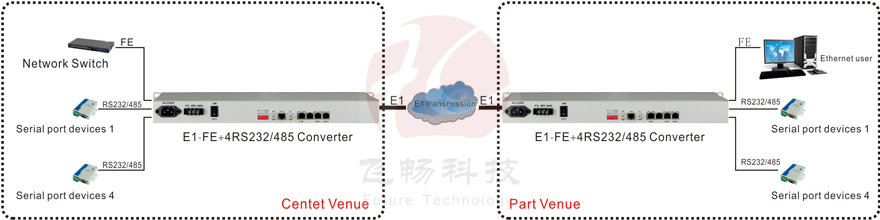

Application Scheme
